Streaming & Recording Overview

pMix can send your program output to multiple destinations simultaneously — live streaming platforms, network outputs, and local recording.

Output types

RTMP streaming

Stream to any RTMP-compatible platform:

YouTube Live
Twitch
Kick
Facebook Live
TikTok Live
X (Twitter)
Restream.io
Any custom RTMP server

pMix has built-in presets for each platform with recommended settings.

NDI output

Send your program as an NDI source on the local network. Other NDI-compatible software and hardware can receive it — useful for feeding a recording PC, a second mixer, or a confidence monitor.

SRT output

Output via Secure Reliable Transport for reliable delivery over unpredictable networks. SRT is used by many broadcast facilities and cloud ingest services.

HLS output

Output as an HTTP Live Streaming (HLS) feed for browser-based viewing.

Local recording

Record your program output directly to the iPad’s storage. Recording works independently of streaming — you can record without streaming, stream without recording, or do both simultaneously.

Starting and stopping

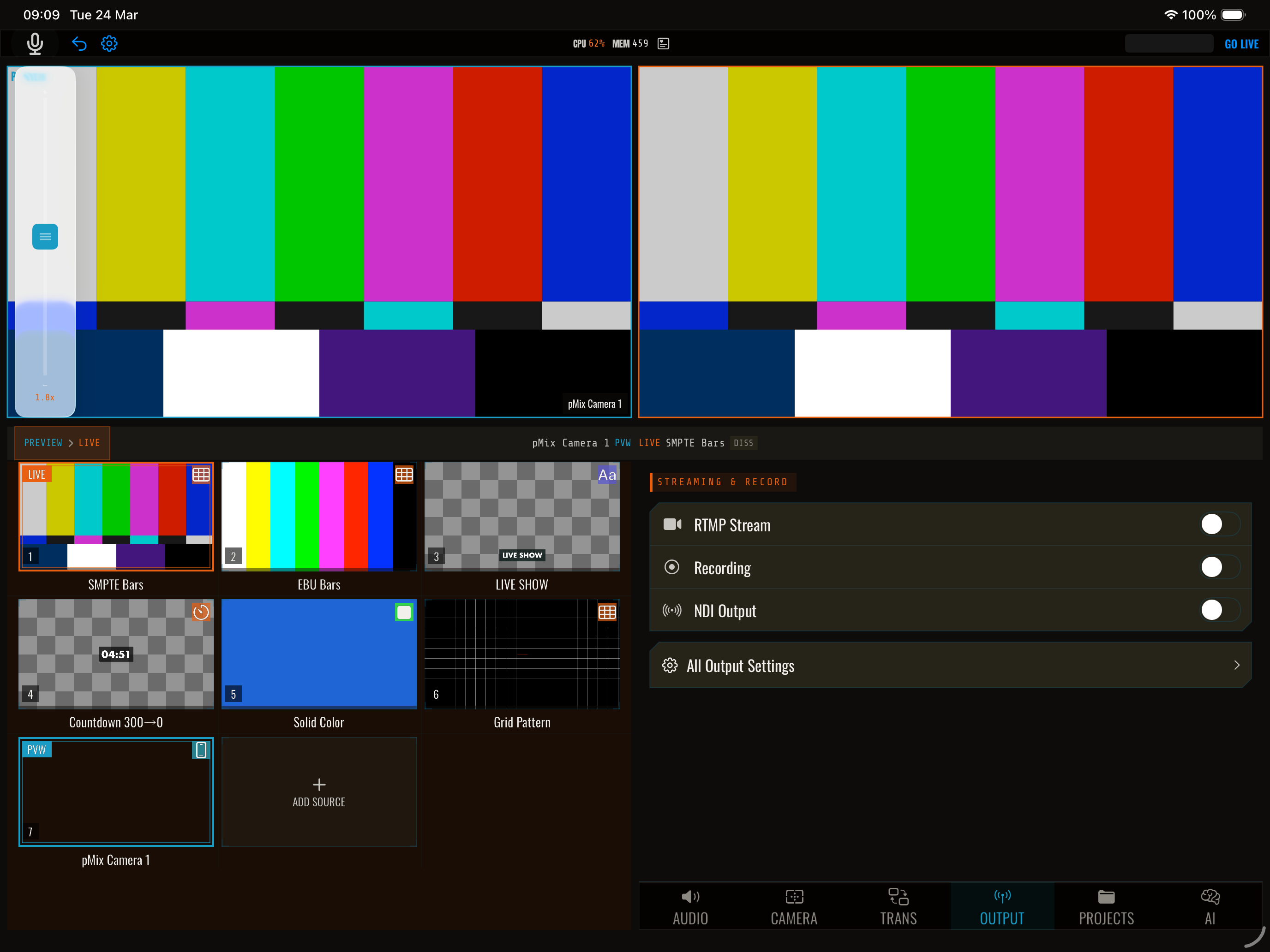

Configure your outputs in Settings → Streaming
Tap the Start button to begin all enabled outputs
The status bar shows live indicators for streaming and recording
Tap Stop to end all outputs

You can also control outputs individually via the settings panel or OSC commands.

Video settings

Setting	Description	Typical values
Resolution	Output resolution	1920x1080, 1280x720
Frame rate	Frames per second	30, 60
Video codec	H.264 or H.265 (HEVC)	H.264 for broadest compatibility
Bitrate	Video bitrate in kbps	2500–8000 depending on platform
Keyframe interval	Seconds between keyframes	2 (required by most platforms)

Platform-specific guides

Each streaming platform has its own requirements for stream keys, bitrates, and codecs. See the individual platform guides:

Streaming to YouTube
Streaming to Twitch (coming soon)
Streaming to Kick (coming soon)
Streaming to Facebook Live (coming soon)
